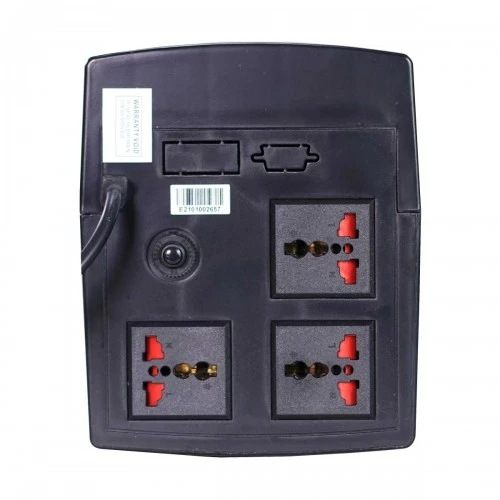

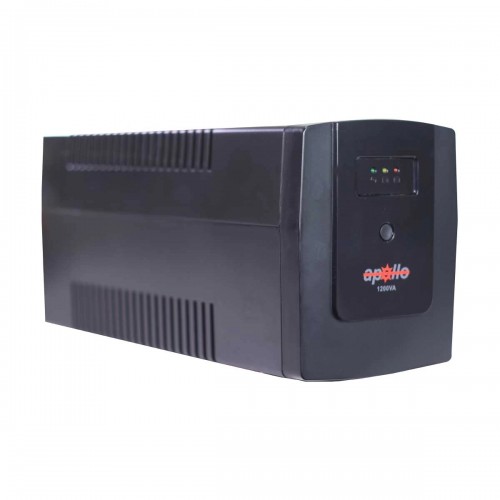

Apollo 1200VA Line Interactive UPS
Original price was: 7,500৳ .7,250৳ Current price is: 7,250৳ .
-3%
- No Load Auto Shutdown
- Line interactive Design with Boost & Buck AVR -25%+25%
- RJ11 Jack for Internet Protection
- Cold Start Function
- High/Low Voltage Protection, Overload/Short-Circuit Protection
- Beeping Alarm on Battery, Battery Low and Overload
- Communication Port for Smart UPS Monitoring and Controlling
- LED Display
- Frequency Selection Automatically
200 in stock
Specification
| Apollo 1200VA Line Interactive UPS | ||
| Model | 1120 | |
| Input | Voltage | 220VAC ± 20~35% (Customizable) |
| Frequency | 50Hz or 60Hz | |
| Inv. O/P | Waveform | PWM Simulated Sinewave |
| Frequency | 50 Hz or 60Hz ± 1Hz | |
| Capacity | 1200VA | |
| Voltage | 220VAC ± 3~8% | |
| Transfer Time | 2ms | |
| Battery | Types | Lead-Acid maintenance-free |
| DC Bus | 12V/7.2A | |
| Number | 2 PCS | |
| Recharge Time | Typically 8 hours to 90% Charged | |
| Backup Time | 15~30 Minutes Depending on load connected (Long Backup Optional) | |
| Protection | Over/Under Volt. | Switch to Bat. O/P when Mains over regulation range |
| Overload/Short | Fuse & current limited for both mains and Battery modes | |
| Low Battery | Two stages; on battery drain after cut off | |
| Surge | Meets IEEES87 Cat.A | |
| Noise Filtering | EMI/RFI full time suppression | |
| Mechanical | Socket Type | IEC/Universal/UK Socket |
| Socket No. (pcs) | 1~4 IEC/UK/Universal Socket | |
| Dim (Wx HxD)mm | 115x162x358 | |
| Net Weight (kgs) | 12 | |
| Shipping Weight (kgs) | 12.5 | |
| Environment | Ambient | 0~40 degree C, 0~90% non-condensing |
| Audible | Less than 35 dBA (1M distance) | |
| Warning | LED on Front | AC Normal: Green light Steadily, Backup: Yellow light intermittently, Fault: Red light |
| Signals | Beep Alarm | On Battery, Battery Low and Overload |
| Communication Port | DB9 Communication Port built in for Software Control (On Demand) | |
| USB Option | 98, 2000, NT, Novell, Unix applications (Optional) | |
| Cold Start | It enables to activate UPS without Utility Power | |
| Applications | Brand/ Clone Computers, PABX, Intercom, Printer, Fax | |
* Customized different specifications are available (if required)
* All Specifications mentioned above are subject to change without prior notice
Additional Information
| Name | Apollo 1200VA Line Interactive UPS |
|---|---|
| Categories | UPS |
| Subcategories | Offline UPS |
| Summary | AFFORDABLE, HIGH-PERFORMANCE OFFLINE UPS |
| Tags | 1200VA UPS, Apollo UPS, Line Interactive UPS, Offline UPS |
