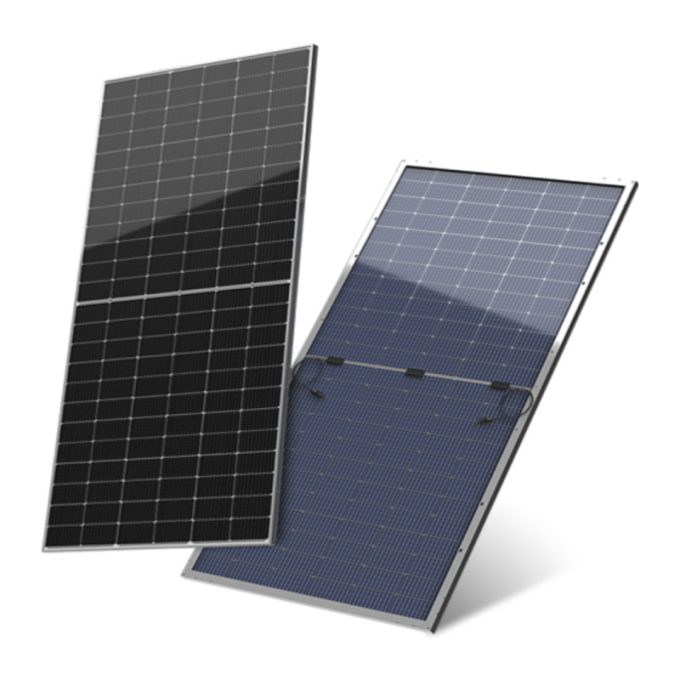

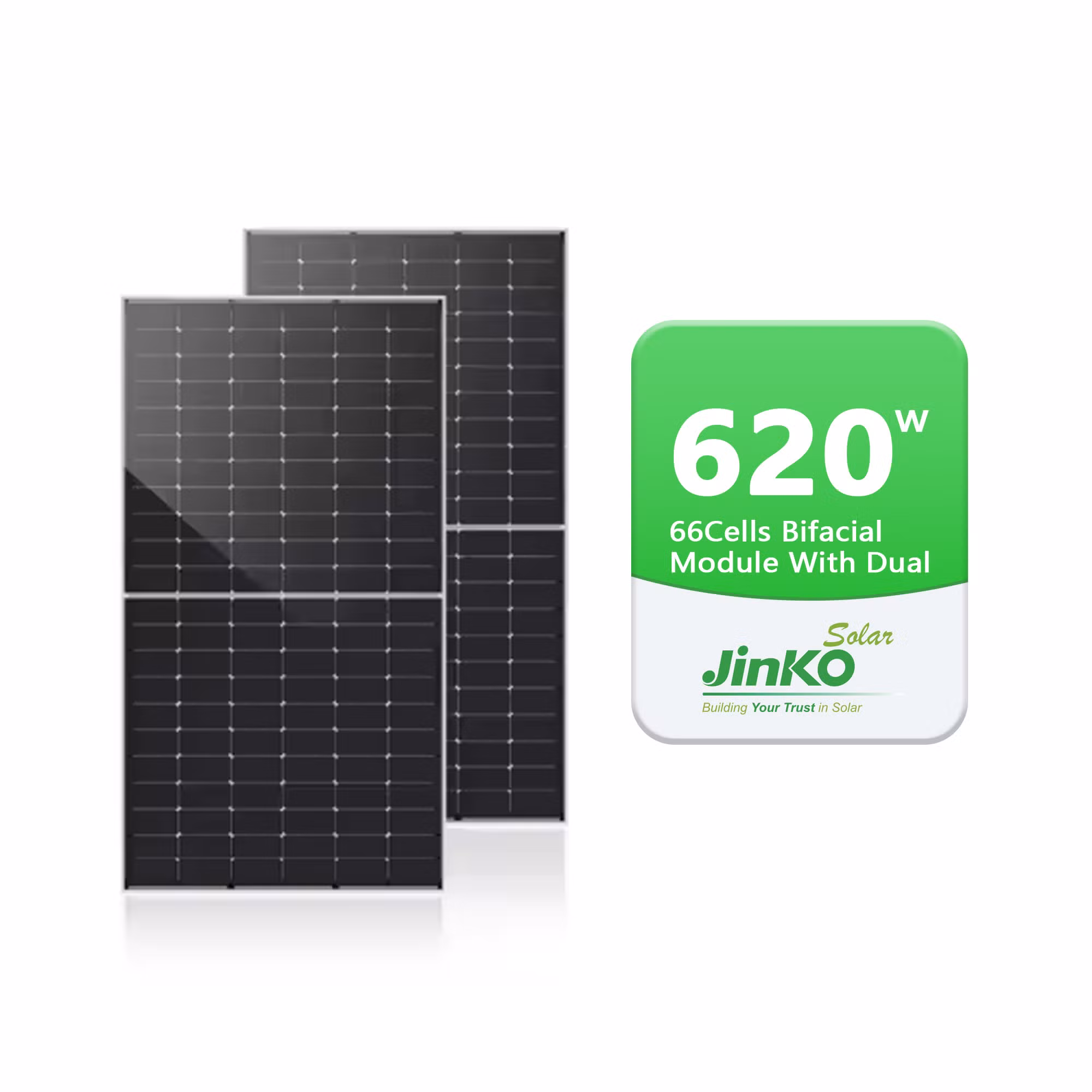

Jinko Tiger Neo 620 Watts Solar Panel – Bifacial Module With Dual Glass
Jinko 620 Watts Solar Panels Are Ideal For:
- On-grid and off-grid commercial/industrial rooftops
- On-grid and off-grid residential ground-mount solar systems
- Solar power stations, solar carports
- Other on-grid applications
200 in stock
Technical Specifications
| Parameter | Value |
|---|---|
| Key Features | |
| Technology | N-Type Bifacial Dual Glass |
| Cell Technology | SMBB (Super Multi-Busbar) |
| Hot 2.0 Technology | Better reliability, lower LID/LEITID |
| PID Resistance | Excellent Anti-PID performance |
| Power Tolerance | 0 ~ +3% |
| Mechanical Data | |
| Cell Orientation | 66 cells (132 half-cells) |
| Junction Box | IP68 rated, with bypass diodes |
| Glass | Dual glass, 2.0mm + 2.0mm semi-tempered glass |
| Frame | Anodized aluminum alloy |
| Weight | ~32.0 kg |
| Dimensions (L × W × H) | 2384 × 1134 × 30 mm |
| Electrical Characteristics (STC) | |
| Maximum Power (Pmax) | 620W |
| Open Circuit Voltage (Voc) | ~47.2V |
| Short Circuit Current (Isc) | ~16.8A |
| Voltage at Maximum Power (Vmp) | ~39.1V |
| Current at Maximum Power (Imp) | ~15.9A |
| Module Efficiency | ~23.0% |
| Operating Parameters | |
| Operational Temperature | -40°C ~ +85°C |
| Maximum System Voltage | DC1500V (IEC) |
| Maximum Series Fuse Rating | 35A |
| Nominal Operating Cell Temperature (NOCT) | 45±2°C |
| Protection Class | Class II |
| Mechanical Loading | |
| Front Side Maximum Static Loading (Snow) | 5400Pa |
| Rear Side Maximum Static Loading (Wind) | 2400Pa |
| Temperature Coefficients | |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperature Coefficient of Voc | -0.280%/°C |
| Temperature Coefficient of Pmax | -0.350%/°C |
Jinko 620w Solar Panel Main Features
N-Type Technology
N-Type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
Dual-Sided Power Generation
Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
SMBB Technology
Better light trapping and current collection to improve module power output and reliability
Anti-PID Guarantee
Minimizes the chance of degradation caused by PID phenomena through optimisation of cell production technology and material control.
HOT 3.0 Technology
N-type modules with JinkoSolar’s HOT 3.0 technology offer better reliability and efficiency
Mechanical Load Enhanced
Certified to withstand: 5400 Pa front side max static test load, and 2400 Pa rear side max static test load
